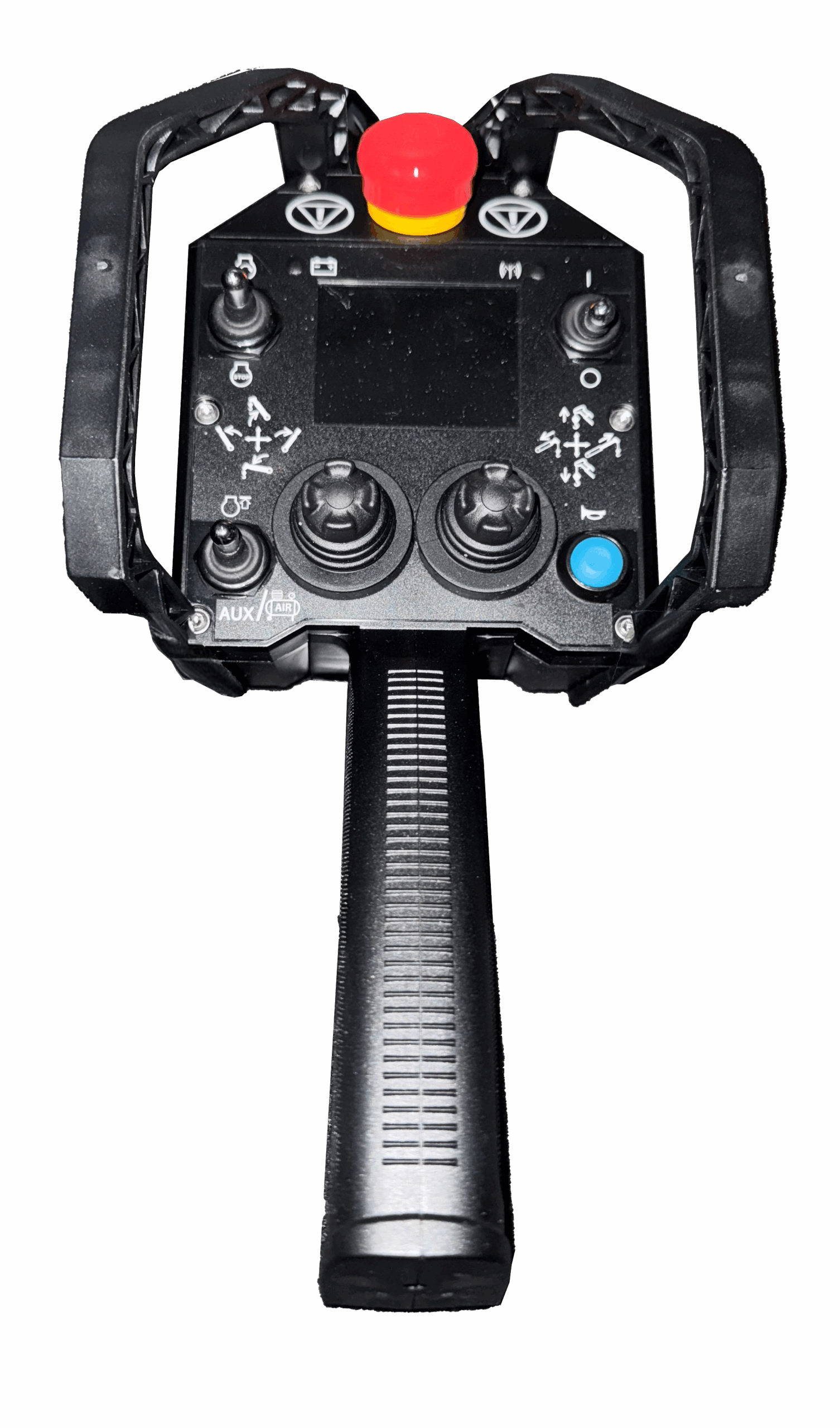

Tele Radio Pistol Grip
The Tele Radio pistol grip transmitter combines rugged reliability with intuitive ergonomics, making it the ideal choice for demanding industrial applications. Designed for precision control at long distances, this handheld unit ensures operators can work efficiently, safely, and with maximum flexibility.
Key benefits of the pistol grip
| Powerful battery options Equipped with a high-capacity rechargeable Li-ion battery, with multiple charging options: docking station, back-up cable, or optional AA battery pack. | Versatile control Supports both digital and analog functions, including rockers, sliders, potentiometers, thumbsticks, toggle switches, and pushbuttons. | Durability in harsh environments Moulded housing with high mechanical and chemical resistance, tested to IP66 for dust and water protection. |
| Operator-focused design Lightweight, ergonomic pistol grip for extended operations without fatigue. | Safety built-in Standard start/stop pushbuttons, on/off switch, and optional LED indicators or color display with cable back-up. | Customizable layouts Operator terminal configurations can be tailored to match specific customer and application requirements. |
TYPICAL APPLICATIONS OF THE PISTOL GRIP
To give an idea of the possibilities, we have some examples of applications and their typical products below:
CRANES
Mobile, hydraulic, tower, service, and overhead.
INDUSTRY
Forestry, recovery vehicles, concrete pumps, conveyor belts, firefighting systems, fueling systems, stage equipment.
MINING
Draglines, stackers, reclaimers, shovels, crushers.
Tele Radio Pistol Grip
- Reliable operation
Unique signal encoding prevents unintended movements; automatic activity check on start-up. - Programmable intelligence
Integrated PLC functionality for interlocking, sequencing, and timing — without extra hardware. - Long operating time
Up to 50 hours of typical use per charge. - Compact & lightweight
Less than 1.5 kg, ergonomic for daily industrial work. - Global frequency access
2.4 GHz license-free worldwide radio access.
Receiver Unit for the pistol grip
- Flexible receiver options with multiple digital/analog I/Os.
- Direct compatibility with most fieldbus systems: ProfiBus, ModBus RTU, CANopen, SAE J1939, DeviceNet, ModBus TCP, Ethernet IP.
- Backup via cable connection for programming, control, and charging.
- Supports multi-terminal and multi-receiver systems, ideal for tandem operations.
General Data of the pistol grip
- Operating distance: ~200 m line of sight
- Protection: IP66
- Operating temperature: -22°F to +140°F (-30°C to +60°C)
- Battery options: Rechargeable 3.6V Li-Ion / 3×AA alkaline backup
- Dimensions: Body 128 × 143 × 92 mm | Handle 136 × 32 × 129 mm
Compliance and standards
CE marked
FCC Part 90 approved
Complies with IEC 60204 and ISO 13849 (Safety of Machinery)
