TEQ INDUSTRIAL REMOTE CONTROL 2.0

Innovative ideas, innovative products

Based upon 60 years of knowledge and experience the Swedish Tele Radio Group developed a new series of industrial remote controls with the highest safety levels for hydraulic, mobile and industrial applications: Tele Radio TEQ Waist Transmitters.

Tele Radio TEQ Waist Transmitters comes in two versions. Either you choose our Basic Line or opt for the Custom Line which is our bespoke solution. Our Basic Line is equipped with standard components and specs to serve a large part of the market at an attractive price. For more exceptional applications we offer our customized TEQ products.



YOUR DEMAND | YOUR CHOICE

BASIC LINE TRANSMITTER CUSTOMIZED TRANSMITTER BASIC LINE RECEIVER CUSTOMIZED RECEIVER ACCESSORIES
Suitable for most applications Tailor made Multiple pre-programmed I/O’s Multiple programmable I/O’s Active antenna
Standard control elements Flexible, adjustable system Fail safe and redundant emergency stop Multiple fieldbus protocols possible Battery system
Standard black face plate All control elements possible All outputs / inputs programmable
Best price Customized faceplate Customized wiring solution

BASIC LINE

The Basic-line assortment exists of 3 basic models of transmitters that come with: vibration for warning & alarm feedback, duplex communication for feedback, impact type & twist release stop switch on the side, M12 connector for cable control, standard black faceplate with white symbols, illuminated faceplate & LEDs in handle bar for panel illumination, 2x Li-Ion battery & charger station, vehicle (12-24Vdc) & Mains (100-240Vac) adapter and carrying neck strap. The basic transmitters are available in a midsize version (T24) and a smaller version (T26).

The Tele Radio TEQ Basic Line range also features 2 types of receivers that come with: M12 connector for cable control, RPSMA connector ready for an external antenna, internal antenna, PLd+Cat3 safety level stop function and pre-programmed I/O’s.

CUSTOMIZED

Because of the modular build of the Tele Radio TEQ Waist Transmitters, the flexibility of the products is extreme. Under the hood of the transmitters one can choose from a wide range of technical possibilities. All transmitters can be configured to your exact specifications. Naturally next to these technical options, all standard control elements imaginable are possible, down to the very last button, joystick or paddle. The faceplate can be customized with either full colour print or engraved, the choice is yours.

The Tele Radio TEQ receivers are small in size but loaded with features that make it easy to adapt to most modern systems: multiple programmable I/O’s, multiple fieldbus protocols possible, all outputs and inputs programmable, optional external antenna and customized wiring solution.

TEQ BASIC LINE

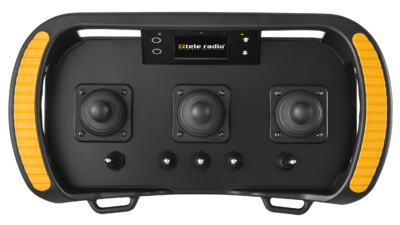

TRANSMITTER T24-01 MIDI

TEQ BASIC LINE

TRANSMITTER T26-02 MINI

TEQ BASIC LINE

TRANSMITTER T26-03 MINI

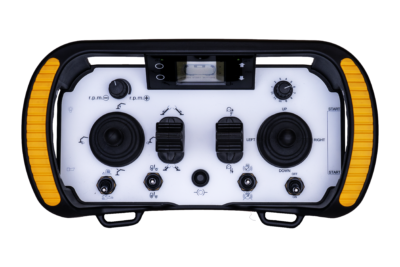

TEQ CUSTOMIZED

THE CHOICE IS YOURS

3x proportional redundant XY joystick 2x proportional redundant XY joystick 6x proportional redundant paddle

Configuration:

Your system can be configured to your exact specifications.

2” colour display with menu buttons 2” colour display 2” colour display

Control elements:

You will have free choice of all standard buttons, joysticks, paddles and toggle switches possible.

2x 1-0 maintained toggle switch (SW1, SW5) 1x 1-0 maintained toggle switch (SW1) 1x 1-0 maintained toggle switch (SW1)

Faceplate:

Your faceplate can be personalized with your own symbols/text/background image, in full colour printing or engraved.

2x 1-0-1 maintained toggle switch (SW3, SW4) 2x 1-0-1 maintained toggle switch (SW3, SW4) 2x 1-0-1 maintained toggle switch (SW3, SW4)

Certifications:

Your system can be made according to the PLe / SIL3 standard.

1x 1/0/1 spring return toggle switch (SW2) 1x 1/0/1 spring return toggle switch (SW2) 1x 1/0/1 spring return toggle switch (SW2)
6x 0/1 spring return metal side buttons 4x 0/1 spring return metal side buttons 4x 0/1 spring return metal side buttons
SIL3, PLe+Cat3 safety level stop function PLd+Cat3 safety level stop function
Read more Read more Read more



TEQ BASIC LINE
RECEIVER R20-01
TEQ BASIC LINE
RECEIVER R21-01
TEQ CUSTOMIZED
THE CHOICE IS YOURS
The TEQ R20 receiver will control up to 90% of pump valves currently on the market. The proportional resolution ensures a smooth and jerk-free operation of hydraulic machines that is second to none. The R21 receiver is the CAN interface receiver of the future available today. Small but loaded with features that make it easy to adapt to the most modern CAN or BUS systems. The Tele Radio TEQ receivers are small in size but loaded with features that make it easy to adapt to most modern systems.
26x pre-programmed I/O’s 4x pre-programmed I/O’s Multiple fieldbus protocols possible
Built in pre-wired 35pin connector with 2 m cable with 35 cores M12 connector with CANopen serial communication protocol All outputs and inputs programmable
M12 connector, ready for cable control M12 connector, ready for cable control External antenna optional
RPSMA connector ready for external antenna RPSMA connector ready for external antenna Customized wiring solution
Internal antenna Internal antenna Relay board, optional for R20
PLd+Cat3 safety level stop function PLd+Cat3 safety level stop function 2nd fieldbus protocol, optional for R21
Fail safe and redundant emergency stop Fails safe and redundant emergency stop
Read more Read more



Unique technology

At Tele Radio we believe in innovation. We provided our systems with the most modern technology for a better control and communication with your application.

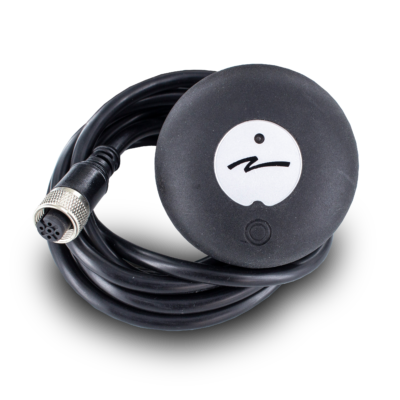

Active antenna

The Tele Radio TEQ system is state of the art and future-proof. It can be equipped with an active antenna which can also serve as a stand-alone repeater. This new accessory increases the range between transmitter and receiver of the Tele Radio TEQ series substantial. It makes it possible to use this system in very demanding circumstances, like mining, in mountainous areas, or in big buildings without losing signal.

RFID control

The Tele Radio TEQ products (transmitters, receivers and batteries) are standard equipped with RFID, a wireless technique for recognition of a unique code of the system, product or user. The settings of a user can be saved on a smartcard with RFID which is recognized by the system during usage. Different user levels can be set up. These are wirelessly and automatically activated.

BUS systems

To meet the current industry standards, the Tele Radio TEQ remote controls are compatible with a wide range of BUS systems. A smooth cooperation with the software of your machine can be assured. The Tele Radio TEQ remote controls can handle CANOPEN, MODBUS and SAE J1939.

Smart software

The smart software of the products of the Tele Radio TEQ series makes it possible to adjust in the field or from a distance at any time.

The highest safety levels for hydraulic,

mobile and industrial applications:

Tele Radio TEQ Waist Transmitter
