TEQ INDUSTRIAL REMOTE CONTROL 2.0
Innovative ideas, innovative products
Based upon 60 years of knowledge and experience the Swedish Tele Radio Group developed a new series of industrial remote controls with the highest safety levels for hydraulic, mobile and industrial applications: Tele Radio TEQ Waist Transmitters.
Tele Radio TEQ Waist Transmitters comes in two versions. Either you choose our Basic Line or opt for the Custom Line which is our bespoke solution. Our Basic Line is equipped with standard components and specs to serve a large part of the market at an attractive price. For more exceptional applications we offer our customized TEQ products.
YOUR DEMAND | YOUR CHOICE
|BASIC LINE TRANSMITTER||CUSTOMIZED TRANSMITTER||BASIC LINE RECEIVER||CUSTOMIZED RECEIVER||ACCESSORIES|
|Suitable for most applications||Tailor made||Multiple pre-programmed I/O’s||Multiple programmable I/O’s||Active antenna|
|Standard control elements||Flexible, adjustable system||Fail safe and redundant safety stop||Multiple fieldbus protocols possible||Battery system|
|Standard black face plate||All control elements possible||All outputs / inputs programmable|
|Best price||Customized faceplate||Customized wiring solution|
The Basic-line assortment exists of 3 basic models of transmitters that come with: vibration for warning & alarm feedback, duplex communication for feedback, impact type & twist release stop switch on the side, M12 connector for cable control, standard black faceplate with white symbols, illuminated faceplate & LEDs in handle bar for panel illumination, 2x Li-Ion battery & charger station, vehicle (12-24Vdc) & Mains (100-240Vac) adapter and carrying neck strap. The basic transmitters are available in a midsize version (T24) and a smaller version (T26).
The Tele Radio TEQ Basic Line range also features 2 types of receivers that come with: M12 connector for cable control, RPSMA connector ready for an external antenna, internal antenna, PLe/CAT3, SIL3 safety level stop function and pre-programmed I/O’s.

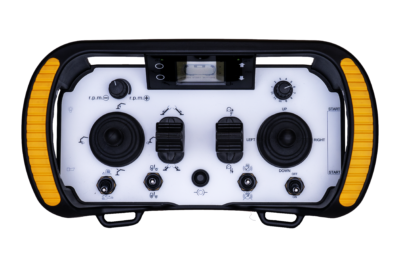

Because of the modular build of the Tele Radio TEQ Waist Transmitters, the flexibility of the products is extreme. Under the hood of the transmitters one can choose from a wide range of technical possibilities. All transmitters can be configured to your exact specifications. Naturally next to these technical options, all standard control elements imaginable are possible, down to the very last button, joystick or paddle. The faceplate can be customized with either full colour print or engraved, the choice is yours.
The Tele Radio TEQ receivers are small in size but loaded with features that make it easy to adapt to most modern systems: multiple programmable I/O’s, multiple fieldbus protocols possible, all outputs and inputs programmable, optional external antenna and customized wiring solution.
TEQ BASIC LINE

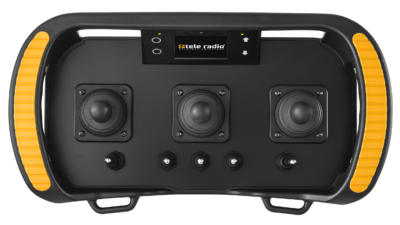

TRANSMITTER T24-01 MIDI
TEQ BASIC LINE

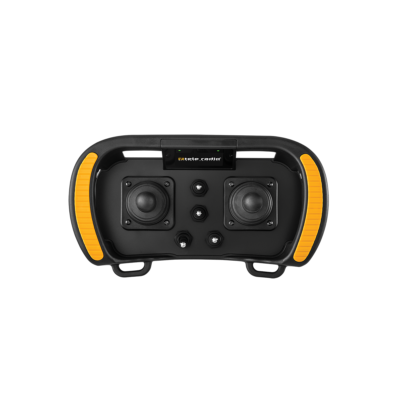

TRANSMITTER T26-02 MINI
TEQ BASIC LINE
TRANSMITTER T26-03 MINI
THE CHOICE IS YOURS
|3x proportional redundant XY joystick||2x proportional redundant XY joystick||6x proportional redundant paddle||
Your system can be configured to your exact specifications.
|2” colour display with menu buttons||2” colour display||2” colour display||
You will have free choice of all standard buttons, joysticks, paddles and toggle switches possible.
|2x 1-0 maintained toggle switch (SW1, SW5)||1x 1-0 maintained toggle switch (SW1)||1x 1-0 maintained toggle switch (SW1)||
Your faceplate can be personalized with your own symbols/text/background image, in full colour printing or engraved.
|2x 1-0-1 maintained toggle switch (SW3, SW4)||2x 1-0-1 maintained toggle switch (SW3, SW4)||2x 1-0-1 maintained toggle switch (SW3, SW4)||
Your system can be made according to the PLe / SIL3 standard.
|1x 1/0/1 spring return toggle switch (SW2)||1x 1/0/1 spring return toggle switch (SW2)||1x 1/0/1 spring return toggle switch (SW2)|
|6x 0/1 spring return metal side buttons||4x 0/1 spring return metal side buttons||4x 0/1 spring return metal side buttons|
|PLe/CAT3, SIL3 safety level stop function||PLe/CAT3, SIL3 safety level stop function|
|Read more||Read more||Read more|
|TEQ BASIC LINE
|TEQ BASIC LINE
THE CHOICE IS YOURS
|The TEQ R20 receiver will control up to 90% of pump valves currently on the market. The proportional resolution ensures a smooth and jerk-free operation of hydraulic machines that is second to none.||The R21 receiver is the CAN interface receiver of the future available today. Small but loaded with features that make it easy to adapt to the most modern CAN or BUS systems.||The Tele Radio TEQ receivers are small in size but loaded with features that make it easy to adapt to most modern systems.|
|26x pre-programmed I/O’s||4x pre-programmed I/O’s||Multiple fieldbus protocols possible|
|Built in pre-wired 35pin connector with 2 m cable with 35 cores||M12 connector with CANopen serial communication protocol||All outputs and inputs programmable|
|M12 connector, ready for cable control||M12 connector, ready for cable control||External antenna optional|
|RPSMA connector ready for external antenna||RPSMA connector ready for external antenna||Customized wiring solution|
|Internal antenna||Internal antenna||Relay board, optional for R20|
|PLe/CAT3, SIL3 safety level stop function||PLe/CAT3, SIL3 safety level stop function||2nd fieldbus protocol, optional for R21|
|Fail safe and redundant safety stop||Fails safe and redundant safety stop|
|Read more||Read more|
At Tele Radio we believe in innovation. We provided our systems with the most modern technology for a better control and communication with your application.

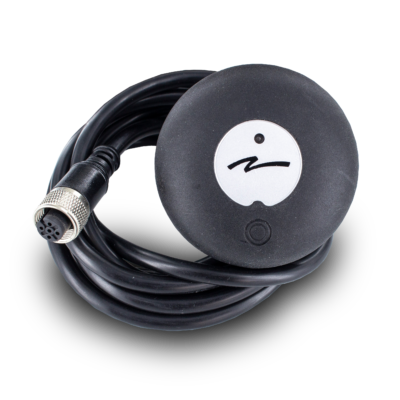

The Tele Radio TEQ system is state of the art and future-proof. It can be equipped with an active antenna which can also serve as a stand-alone repeater. This new accessory increases the range between transmitter and receiver of the Tele Radio TEQ series substantial. It makes it possible to use this system in very demanding circumstances, like mining, in mountainous areas, or in big buildings without losing signal.
The Tele Radio TEQ products (transmitters, receivers and batteries) are standard equipped with RFID, a wireless technique for recognition of a unique code of the system, product or user. The settings of a user can be saved on a smartcard with RFID which is recognized by the system during usage. Different user levels can be set up. These are wirelessly and automatically activated.
To meet the current industry standards, the Tele Radio TEQ remote controls are compatible with a wide range of BUS systems. A smooth cooperation with the software of your machine can be assured. The Tele Radio TEQ remote controls can handle CANOPEN, MODBUS and SAE J1939.
The smart software of the products of the Tele Radio TEQ series makes it possible to adjust in the field or from a distance at any time.
The highest safety levels for hydraulic,
mobile and industrial applications:
Tele Radio TEQ Waist Transmitter
