TEQ WAIST TRANSMITTERS

For the widest range of applications

With more than 65 years of experience in the field of wireless industrial control units, Tele Radio has a wide range of transmitters. These transmitters are seamlessly tailored to the exact wishes of the end-user and the specific characteristics of the application.

Tele Radio TEQ waist transmitters are available for the most complex control solutions. These transmitters are worn utilizing a neck, shoulder, or hip belt. Unlike our handheld transmitters, our industrial waist transmitters offer the possibility for a two-handed operation. The large, sturdy handles vouch for a relaxed working position.

We supply our TEQ waist transmitters in three different sizes. Either available as the standard edition or built exclusively for your application including push buttons, switches, joysticks, feedback information, etc. The choice is yours: either go for a compact and therefore handy transmitter or one of the bigger versions that include plenty of space for any additional controls and a display up to 4.3 inches for a feedback information from the controlled machine or vehicle.

With the Tele Radio TEQ waist transmitters, the possibilities in applications are almost endless.

CHOOSE YOUR MODEL RANGE


GO STANDARD OR FOR CUSTOM BUILT

Are you in need of a transmitter for a (more or less) standard application? Then we recommend that you opt for the PrimaTEQ, VersaTEQ or SupraTEQ Basic Line version. These transmitters have a fixed set of controls, are highly adjustable, have an independently certified stop button, and offer the best price/quality ratio.

To meet the current industry standards, the Tele Radio waist transmitters are compatible with a wide range of BUS systems.

If you have specific wishes for your application, we recommend to built your own Custom Line version in consultation with our specialists.

See the main differences below:

BASIC LINE

CUSTOM LINE

TRANSMITTERRECEIVER
Suitable for most applicationsPre-programmed I/O’s
Standard control elementsM12 connector, ready for cable control
Basic black faceplateRPSMA connector, ready for external antenna
Best priceChoice of 2 types of receivers
TRANSMITTERRECEIVER
Tailor madeMultiple programmable I/O’s
All control elements possibleMultiple fieldbus protocols possible
Customized faceplate

All outputs & inputs possible
Price based upon requestCustomized wiring solution

CHOOSE YOUR ACCESSORIES

We offer a wide range of accessories for your system, including repeater/active antenna, battery system, external antenna etc.

ACTIVE ANTENNA (Not compatible with PRIMATEQ)

The repeater/active antenna is an effective way to increase your range of operation with up to 2 kilometers in terrain (at the maximum of 16 repeaters).

  • Active Antenna in the same enclosure
  • 2 kilometers/1.25 mile range
  • Antenna diversity support

BATTERY SYSTEM

The high capacity Li-ion batteries for Tele Radio TEQ are equipped with RFID* tags and are also hot-swappable for uninterrupted control.

  • Hot-swappable
  • RFID

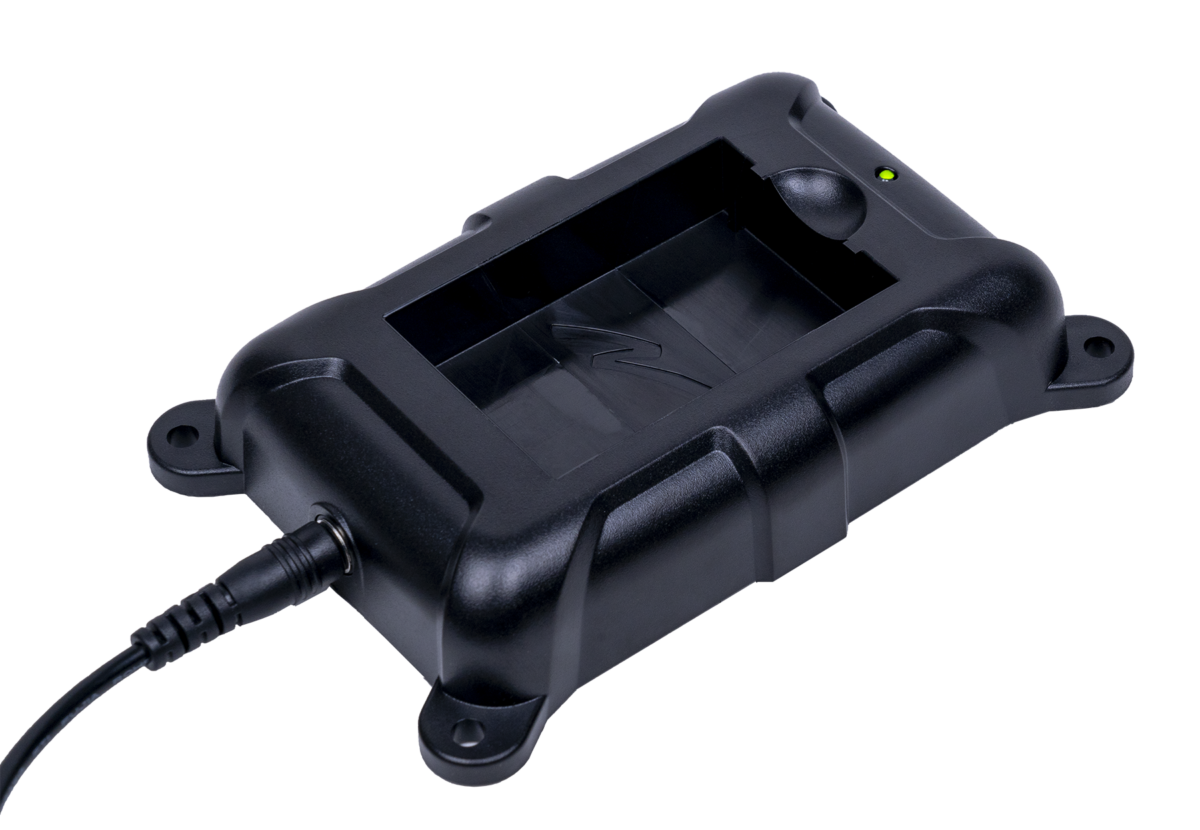

  • Wall/table charger available

*Not standard / only for Custom Line

WAIST BELT

Waist belt for maximum comfort. Adjustable in length. Suitable for all TEQ waist transmitters. Provides extra comfort when wearing your transmitter.
