SUPRATEQ
Our supreme, full size waist transmitter
Our state-of-the-art allrounder within our product range of TEQ waist transmitters. Around 33 centimeters in size with naturally shaped grips and a curved, ergonomically designed housing. Due to the size it offers plenty of space on the faceplate for a vast number of controls that can handle the most extensive tasks. SupraTEQ is your solution for controlling complex hydraulic, mobile and industrial machinery. The SupraTEQ is robust and safe, due to the standard, independently certified PLe/CAT3, SIL3 safety level stop function.
UNIQUE TECHNOLOGY
We believe in innovation. Tele Radio has developed various applications that allow you to better operate and control your equipment using the latest technology. The Tele Radio SupraTEQ has, among other things, the following, special features and possibilities.
Active antenna
The active antenna can also serve as a stand-alone repeater. This increases the range between transmitter and receiver substantial. It makes it possible to use this system in very demanding circumstances, like mining, in mountainous areas, or in big buildings, without losing signal.
RFID control
The RFID is a wireless technique for recognition of a unique code of the system, product or user. The settings of a user can be saved on a smartcard with RFID which is recognized by the system during usage. Different user levels can be set up.
BUS systems
To meet the current industry standards, the Tele Radio SupraTEQ remote controls are compatible with a wide range of BUS systems. A smooth cooperation with the software of your machine can be assured. The Tele Radio SupraTEQ remote controls can handle CANOPEN, MODBUS and SAE J1939.
Depending on your application you can choose the SupraTEQ TW77 Basic Line models or opt for a Custom Line solution. This offers you full freedom in configuring your hardware and software within this transmitter housing and the associated receivers. You can even upgrade your system to a larger 4.3 inch display (SupraTEQ TW78 Custom Line). Our Tele Radio Sales Department can advise you on the best solution for your job.
SUPRATEQ BASIC SPECIFICATION
✓ Size 330 x 147 x 179 mm
✓ Weight, 2.000 grams
✓ Frequency 2,4 GHz, 16 channels
✓ 2” color display
✓ IP65 protection
✓ PLe/CAT3, SIL3 safety level stop function
✓ Vibration for warning & alarm feedback
✓ Duplex communication for feedback
✓ Inpact type & twist release stop switch on the side
✓ M12 connector for cable control
✓ Illuminated faceplate
✓ LED’s in handle bar for panel illumination
✓ Re-chargeable & exchangeable batteries
✓ Up to 10 h with one battery, depending on configuration
MEET THE TELE RADIO SUPRATEQ BASIC LINE
Suitable for many operations and offered at an attractive price. Fitted with standard control elements, a 2” display and black faceplate. If you want to make use of detailed, graphical feedback information on the transmitter we advise the Custom Line solution of the SupraTEQ TW78 with 4,3” color display.

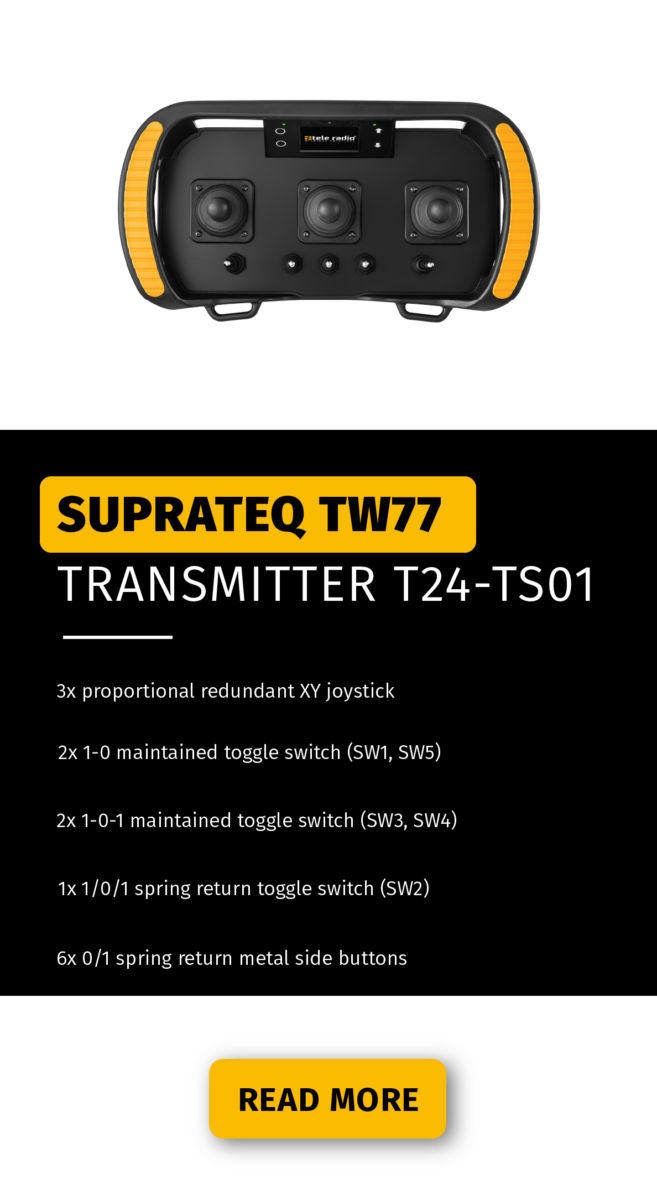

OUR SUPRATEQ BASIC LINE TRANSMITTER
OUR MATCHING BASIC LINE RECEIVERS
THE ADDED VALUE OF OUR PRODUCTS
The solid advice of our Sales Department
Get in contact with us for advice about the best fitting system for your application.
Own Technical Service
Tele Radio has its own Technical Service Department for support, on-site installation and repair.
The various independent safety certificates
For all Tele Radio products with a safety certification, we can provide you with the approval reports from the independent testing authority. Read more about it HERE.
