Innovation held in hand. Available for everyone.
100% MADE IN ITALY
About Sistematica
Founded in 1987 as an electronic engineering studio, Sistematica has led the way in radio-controlled systems since 1995. The company researches and develops its firmware, software, and electronic designs in-house. This way, it brings the most durable, ergonomic, and weather-proof remotes to the hands of operators.
Proven reliability
Sistematica’s range of standard and customized remote-control solutions is a proven answer to in-the-field customer demands. Its patented Safety Point and Tilting Hand technologies show: customers rely on Sistematica for proportional adjustments of machine control and operational safety, especially when it comes to mobile, agricultural, industrial, and maritime applications.
Industry 4.0
Sistematica’s forward thinking is driven by innovation. Ever since the company’s inception, the process is ‘Made in Italy’ – from a concept’s design all the way to its realization. Cloud-based desk and mobile customer apps are cases in point of the company’s innovative outlook.
Sistematica’s offer
Sistematica has industrialized technology into radio remote-controlled ‘systems’ since 1995, such as SafetyPoint, Tilting Hand patents, connected services and much more to increase operational safety and proportional adjustments of machine control for various applications.
Sitematica showcases flexibility and offers customers professional, high quality and maximum security solutions, driven by a continious desire for innovation with respect to environmental and social responsibility.
CLASSIC LINE
CLASSIC LINE are traditional closed handheld radio-controlled systems, but highly customizable. Available either as wired or wireless controls ranging from compact to medium sized. The housing is resistant to impacts and equipped with rubber shell for a solid and durable grip. Available features are keypads with backlight, external antenna, customizable faceplate, E-STOP button, SafetyPoint technology (restricted area for transmitter use) and Tilting Hand (proportional output by rotating the wrist while holding a button down on the handheld) and various accessories.
AVAILABLE CLASSIC LINE CHOICES
| Wired handheld device | Radio Remote control |
|---|---|
 |  |
| Compact up to 6 buttons | Compact up to 6 buttons |
| Medium 6 buttons or more | Medium 6 buttons or more |
CLASSIC WIRED
Wherever freedom of movement is not required to get the job done, Sistematica provides handhelds – on a wire, for less. No receiver needed. Additional advantage is the smaller change of losing the remote control. All equipped with cut-resistant PUR spiral wiring. Power supply, 10 – 30 Vdc
COMPACT WIRED
SIGNAL
Up to 4 buttons
Interacts directly with the PLC of the customer, for instance utilities on a truck. No receiver needed. Standard backlighting. Cable with 6-wire stripped termination (extendable to 2 meters). Size: 109 x 56 x 30 mm. Max. current per output and total: 100 mA/150 mA
BRAVO
Up to 4 buttons + Start/Stop
Interacts directly with PLC. Backlighting. Bable with 7-wires. Three LEDs. Freewheeling diodes on the outputs suitable for directly driving inductive loads such as solenoid valves. Size: 109 x 56 x 30 mm. Max. current per output and total: 4A/8A.
EASYCAN
Up to 6 buttons + Start/Stop
CANBUS wired control (proprietary or J1939). Cable with 4-wire stripped termination, extendable to 2 meters. Three LEDs. Optional E-STOP. Size: 109 x 56 x 30 mm. Size with E-STOP: 122 x 56 x 43 mm.
MEDIUM WIRED

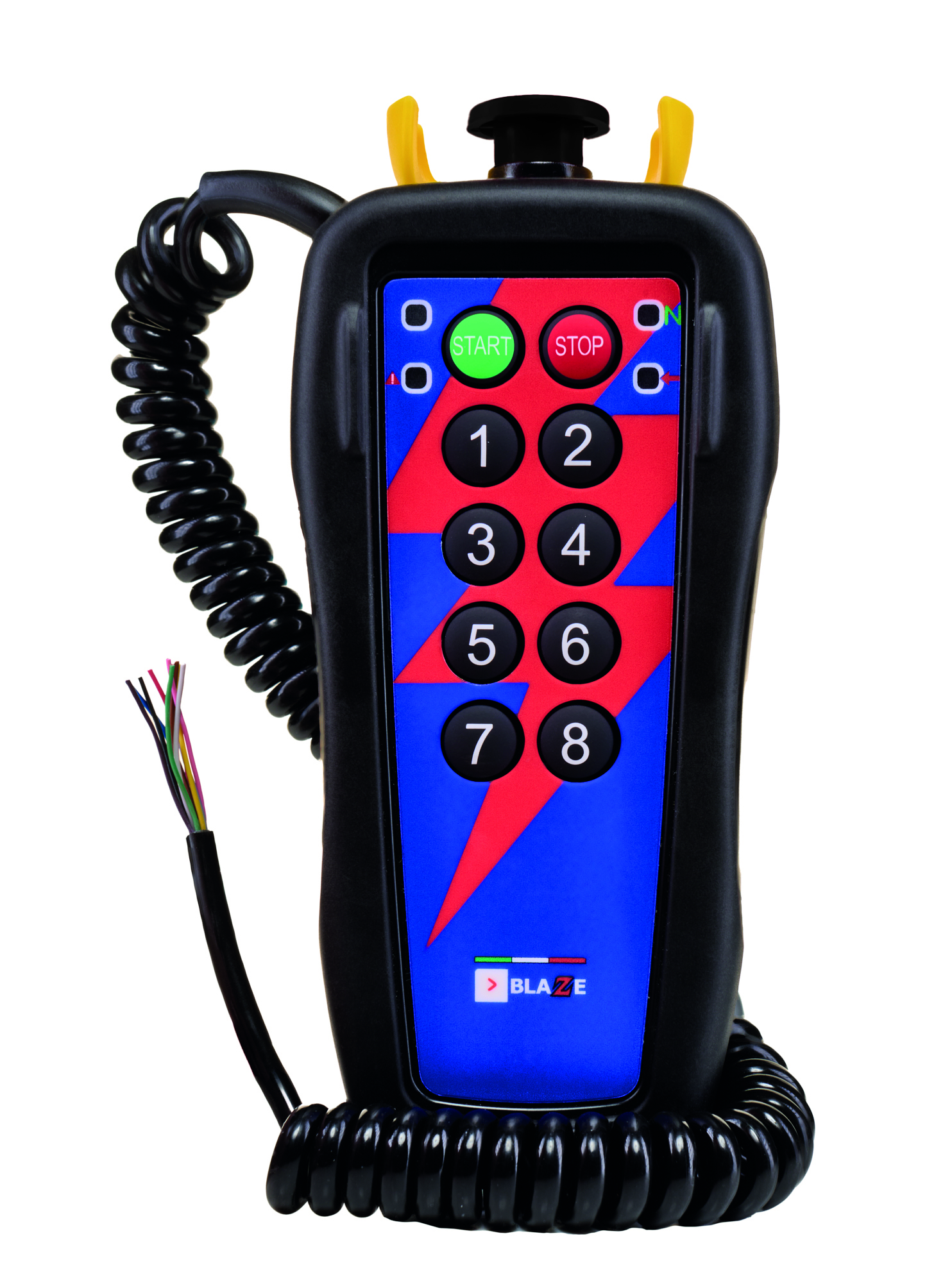

BLAZE
Up to 8 buttons + Start/Stop
Backlight keypad, 4 LEDs, Spiral cable with 10 wires, up to 120 cm length (standard 60 cm). Optional E-STOP. Size: 165 x 80 x 40 mm. Size with E-STOP: 180 x 80 x 40 mm. Max. current per output and total: 3A/6A.
TRENDCAN
Up to 14 buttons + Start/Stop
CANBUS wired control (proprietary or J1939). Spiral cable up to 2 meters with 4-wire stripped termination. Optional E-STOP. Size: 165 x 80 x 40 mm. Size with E-STOP: 180 x 80 x 40).
CLASSIC WIRELESS
Wireless remote controls create far-stretching convenience: it’s a guaranteed reduction of operators’ walking distance and therefor an efficiency boost. For the simplest to the most complex challenge – Sistematica has an answer. Its Classic wireless remotes are compatible with virtually any application, from winches to mobile and maritime solutions. Operating on batteries on 433, 868 or 915 MHz. All transmitters with the guarantee of an IP66 protection level.
COMPACT WIRELESS
NIMBLE
2 buttons + Start/Stop
Basic remote. Ideal to be used for winches. Customizable keys with arrows or numbers. Two LEDs. Only to be connected with CNTR4 controller. Size: 109 x 56 x 30 mm.
EASY
Up to 6 buttons + Start/Stop
Customizable keypad with numbers, arrows or symbols. Will float in water. Standard twilight sensor. Three LEDs. Optional E-STOP. Size: 109 x 56 x 30 mm. With E-STOP: 122 x 56 x 43 mm.
MEDIUM WIRELESS
TREND
Up to 14 buttons + Start/Stop
With page change up to 56 commands. Three LEDs. Standard twilight sensor. Keypad and faceplate are customizable. Optional E-STOP. Size: 165 x 80 x 40 mm. With E-STOP: 180 x 80 x 40 mm.
EGO
Customizable buttons LCD screen
Fully programmable remote control with customizable keypads. Rechareable batteries. Standard charging station. E-STOP optional. Size: 165 x 80 x 40 mm. With E-STOP: 180 x 80 x 40 mm.
RECEIVERS
CNTR4
Up to 4 outputs
Integrated external antenna and 1,5 meter wiring with free wires. For all radio control models up to 4 functions. Completely resinated electronic board makes it fully proof to water and dust. Also available with 2 buttons for direct control.
CNTR8
Up to 8 outputs
Up to 8 outputs and digital input. Integrated antenna. Connected via Plugin cable. Unique indentification code to prevent interfering with other devices, automatic pairing with handheld, various options such as emergency keyboard.
CNTR20
Up to 20 outputs
Up to 20 outputs (8 reversible and configurable as digital inputs. Integrated antenna. Connected via Plugin cable. Identification code to prevent interfering with other devices, automatic pairing, Options such as emergency keyboard.
SMART LINE
The SMART LINE range pushes the boundaries of wireless remotes by introducing global connectivity to industrial radio-controlled systems. The app monitors and registers real-time warnings, operations, and maintenance, and as a result reduces the risk of unwanted interruptions and loss of time. It also offers remote software updating. Available features are keypads with backlight, external antenna, OLED screen, customizable faceplate, E-STOP button, SafetyPoint technology (restricted area for transmitter use) and Tilting Hand (proportional output by rotating the wrist while holding a button down on the handheld) and various accessories.
EASY SMART
Up to 6 buttons + Start/Stop
With maximum 4 page change. Three LEDs. Standard twilight sensor. Keypad and faceplate are customizable. Optional oled screen and E-STOP (also PL ‘D’). Size: 109 x 56 x 30 mm. With E-STOP: 122 x 56 x 43 mm.
TREND SMART
Up to 14 buttons + Start/Stop
Up to 56 functions (4 pages), Three LEDs. Standard twilight sensor. Keypad and faceplate customizable. Optional oled screen and E-STOP (also PL ‘D’). Size: 165 x 80 x 40 mm. With E-STOP: 180 x 80 x 40 mm.
EASY TAG/T-LIFT
Up to 6 buttons + Start/Stop
Handheld with SafetyPoint ‘SMART’ predisposition, capable of ‘reading’ and managing the association of TAGs via APP. This forces the user to maintain a specific position for those activities which require a clear view while working. Size: 109 x 56 x 30 mm.
NEMO
Up to 6 buttons + Start/Stop
For use in the nautical sector. Waterproof (IP66) and floating. Optional backlit. Ideal for gangways, sails etc. Customizable in various models. Frequencies: 433/868/915 MHz. Optional as 2.4 GHz for international use. Size: 109 x 56 x 30 mm.
RECEIVERS
Available with 8 or 20 outputs. CANBUS communication (J1939 or custom). Four color light guide and integrated antenna. Automatic pairing with the handheld. Cable with standard retaining slide for quick and easy installation. Optional emergency keyboard, external antenna, resin-coated cable connector.
ACCESSORIES/ OPTIONS
Various accessories and options are available. This includes cradle with with charging station (USB-C), keycord, SafetyPoint (Classic) and SmartTAG for Easy Tag transmitter, backlight, customizable faceplates and buttons, buzzer, vibracall etc.
Brochure download
