Maximum Safety for Complex Applications!
Tiger is a SIL3 and PLe certified, robust radio control system adaptable to standard and complex lifting and non-lifting applications in harsh environments. It is available in several radio bands with frequency hopping technology, changing frequencies within a spectrum every 40 milliseconds.
SIL3 and PLe
Available in different configurations, Tiger receivers provide standard relay and analogue in/outputs, digital inputs and communication via different fieldbus systems, whereas both the STOP function and two designated relays are approved according to SIL3 IEC 61508 standard and PLe, the highest safety rating available in radio control.
Tiger is capable of providing feedback from your machine, displayed on the transmitter’s LCD screen or alternatively utilizing LED’s situated next to the transmitter’s function buttons.
Systems are pre-programmed with operating modes accommodating hundreds of different user applications. Advanced settings or custom software are available upon request.
- Tiger G2 is a radio control for complex applications. One transmitter can control up to 15 receivers.
- Adjustable range up to 1000 meters.
- Tiger G2 has 69 different channels to choose from for uninterrupted control.
- The transmitter and receiver are protected against moist and dust to a minimum of IP65.
- Duplex communication, CANopen and Modbus.
- Rechargeable and replaceable battery or rechargeable internal battery depending on model.

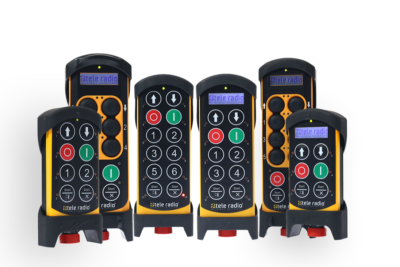

Tiger G2’s pushbutton transmitters are the best in the market. Their stable performance and build will keep you running day-in and day-out. The push button transmitters are at a minimum of IP65 and most are IP66. You can get the handheld units with or without screen depending on your requirements. Transmitters with screens can show a variety of data feedback depending on your applications capabilities.
The joystick transmitters in the Tiger family come in several layouts with customization abilities. They have rechargeable and replaceable batteries and optional waistbands for ergonomic working positions. We offer standard versions but we can also customize to specifications with paddles, potentiometers, buttons and LEDs.
Our system wouldn’t be complete without a wide range of receivers. We can offer smaller seven relay receivers up to very large receivers with 28 relays. In this range you will also find receivers with bus technology: Profibus, Modbus, CANopen and J1939. There is also the option of an analogue receiver which supports step less, analogue control. Furthermore we also have receivers that can plug-in directly to an application that supports a 10-pin Harting connector. All receivers have high quality casings at IP65 or IP66.
