PAQ LINE HAND TRANSMITTERS
Beyond Expectations
AVAILABLE IN 2026
Tele Radio revolutionizes industrial remote control with PAQ: a forward-thinking approach to machine control that allows you to mix and match transmitters and receivers freely; monitor, update, and share settings with the FieldManager™ app; control multiple applications with a single transmitter through C-based plugins; and assign user permissions plus obtain productivity insights with RFID.
As industries continuously evolve and automate, Tele Radio’s new platform equips users for current challenges and prepares them for the future of machine control. Built on a groundbreaking hardware and software platform, this new generation of controllers combines unprecedented flexibility with enhanced security features and user-friendly operation.
PAQ: one platform, total control.
CHOOSE YOUR MODEL

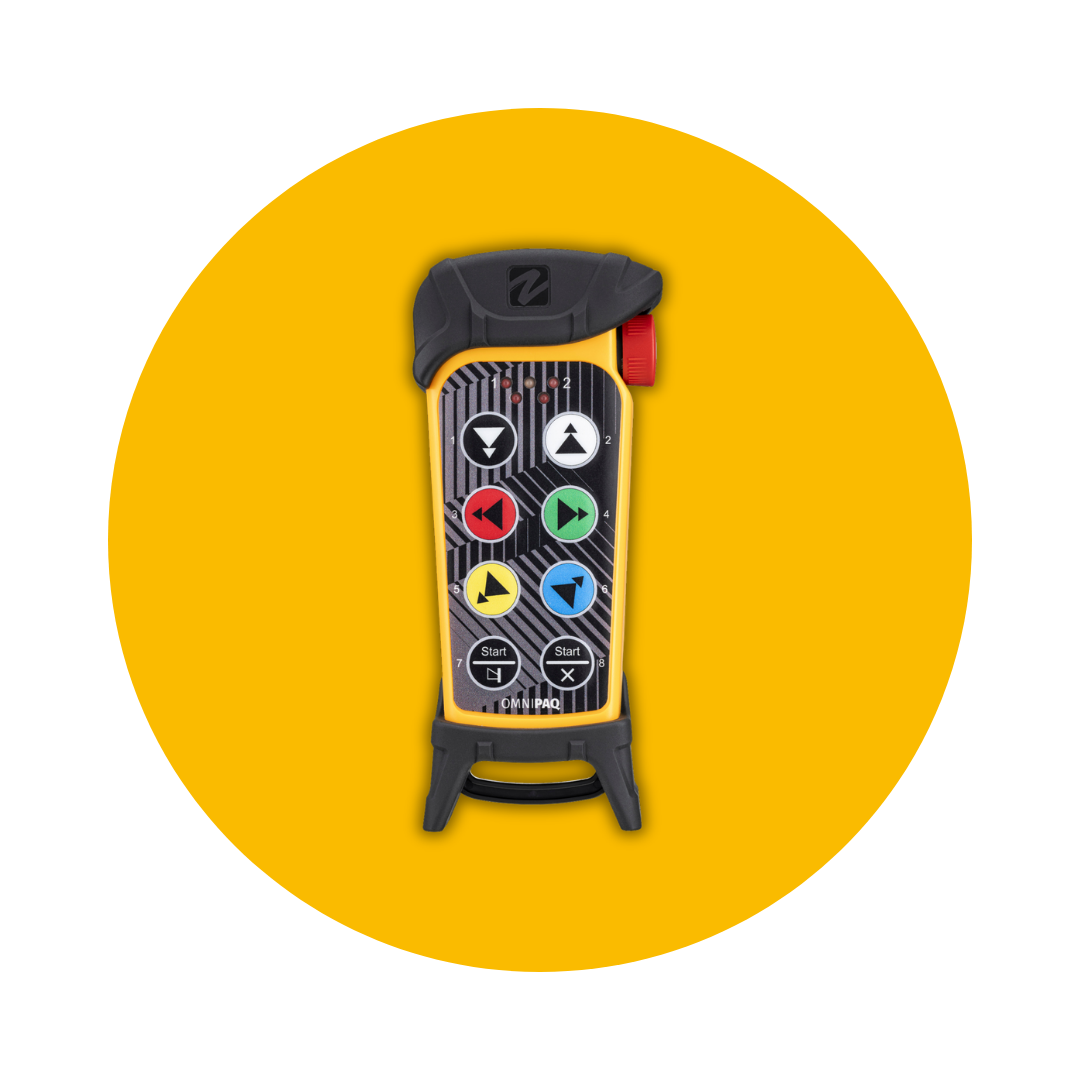

OmniPAQ TH63
T34-01
✅ Buttons: 8 buttons
❌ Display: No
✅ Connectivity: Smartphone App (FieldManager™, Android/iOS),
IEEE 802.15
✅ Frequency: 2.4 GHz (2405 – 2480 MHz), DSSS, Duplex/Simplex
✅ Battery: Removable, rechargeable Li-ion (3.7V/2000mAh)
✅ Protection: IP65
✅ Safety Certification: PLe, CAT4, SIL3 (stop function)
❌ Sensors: No
✅ Customization: Advanced plug-in capabilities (C-language)
DuroPAQ TH56
T35-01
✅ Buttons: 6 buttons
✅ Display: Yes, with backlight
✅ Connectivity: Smartphone App (FieldManager™, Android/iOS), RFID,
IEEE 802.15
✅ Frequency: 2.4 GHz (2405 – 2480 MHz), DSSS, Duplex/Simplex
✅ Battery: Internal, rechargeable Li-ion (3.7V/2000mAh)
✅ Protection: IP66
✅ Safety Certification: PLe, CAT4, SIL3 (stop function)
✅ Sensors: Acceleration sensor (tilt/fall detection), buzzer
✅ Customization: Advanced via C-programming (plug-ins)

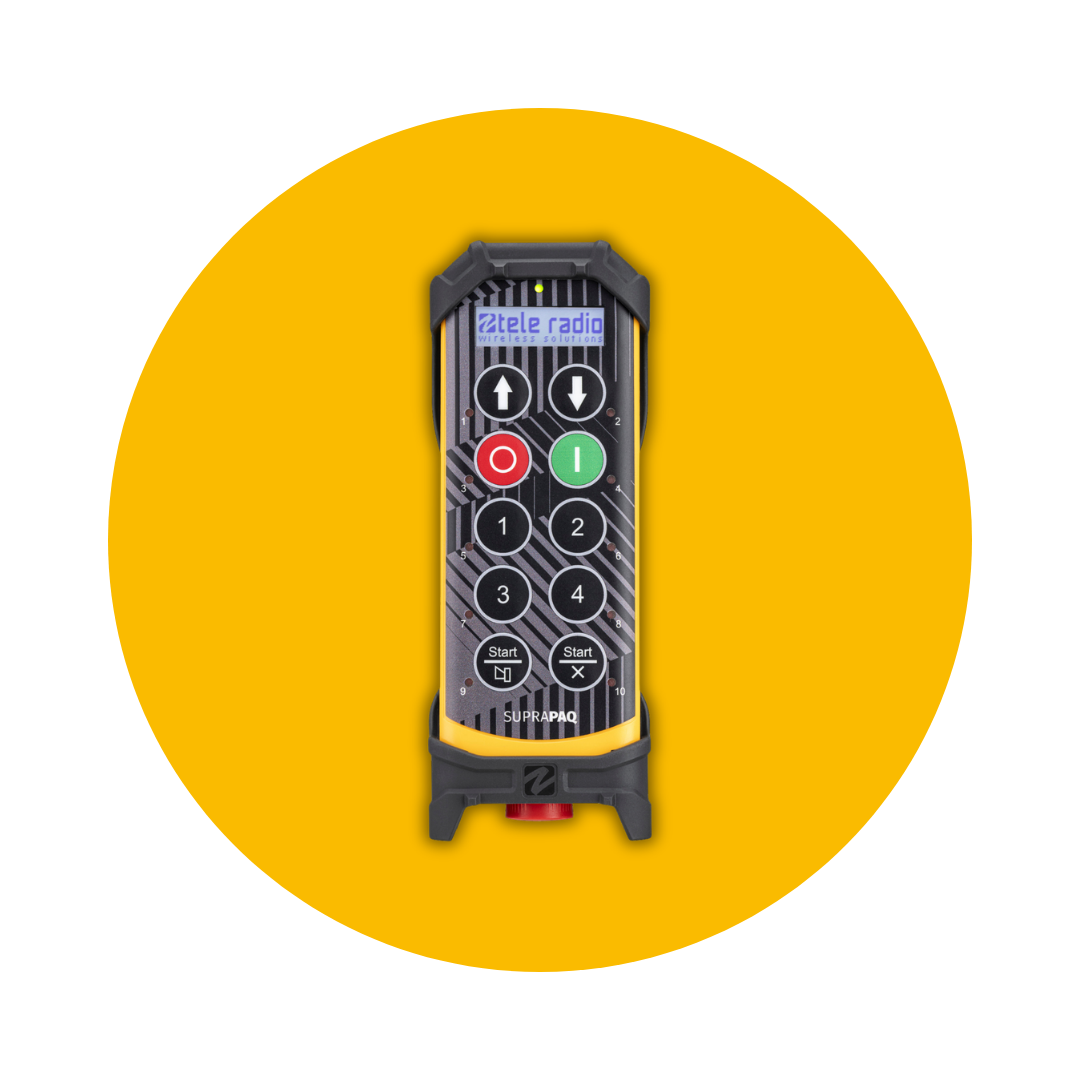

SupraPAQ TH76
T36-01
✅ Buttons: 10 buttons
✅ Display: Yes, with backlight
✅ Connectivity: Smartphone App (FieldManager™, Android/iOS), RFID, IEEE 802.15
✅ Frequency: 2.4 GHz (2405 – 2480 MHz), DSSS, Duplex/Simplex
✅ Battery: Removable, rechargeable Li-ion (3.7V/2000mAh)
✅ Protection: IP65
✅ Safety Certification: PLe, CAT4, SIL3 (stop function)
✅ Sensors: Acceleration sensor (tilt/fall detection)
✅ Customization: Advanced plug-in capabilities (C-language)
DuroPAQ TH55
T37-01
✅ Buttons: 8 buttons
❌ Display: No
✅ Connectivity: Smartphone App (FieldManager™, Android/iOS), RFID, IEEE 802.15
✅ Frequency: 2.4 GHz (2405 – 2480 MHz), DSSS, Duplex/Simplex
✅ Battery: Internal, rechargeable Li-ion (3.7V/2000mAh)
✅ Protection: IP66
✅ Safety Certification: PLe, CAT4, SIL3 (stop function)
✅ Sensors: Acceleration sensor, buzzer
✅ Customization: Advanced plug-in capabilities (C-language)
Get ready to connect with the FieldManager™ app
PAQ introduces a dedicated smartphone application that revolutionizes how users interact with their remote control. The FieldManagerTM app enables:
- Exceptional support and service, independent of an operator’s location
- Quick and intuitive system setup and configuration
- The possibility to share system settings via email
- Real-time monitoring of device status and performance
- Instant access to technical documentation
- Seamless firmware updates for continuous improvement
FLEXIBILITY
With plugins, customers program access levels, button functionality, LEDs, displays, backlighting, menu configuration, charge state, input voltage, use of the acceleration sensor (falling or tilting), and buzzer warnings.
CONNECTIVITY
Thanks to the FieldManagerTM app, users receive support and service regardless of their location. Users enjoy instant access to technical documentation, share system settings via email, and benefit from firmware updates, among others.
PROTECTION
Each function of a PAQ handheld – radio communications, plugins, security – is assigned a different processor unit. As a result, individual customer software can never affect a remote control’s vital components.

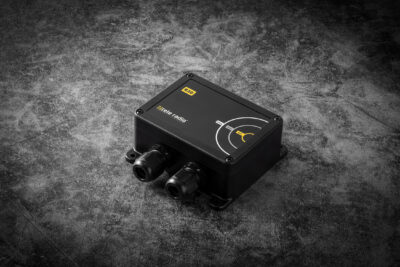

R30 Receiver – Ultimate Connectivity, Unmatched Safety
The R30 Receiver series by Tele Radio combines unmatched connectivity, flexibility, and protection in one robust solution. Designed for industrial environments, the R30 receiver ensures safe and reliable control across a wide range of machinery.
Available in different models tailored to your specific needs:
• R30-21/26 & R30-22/27: Suitable for low voltage applications (12-24V DC & 24-48V AC). The R30-22/27 offers additional flexibility through an expansion board with 5 extra function relays.
• R30-71/76 & R30-72/77: Engineered for higher voltage systems (110-230V AC). Model R30-72/77 includes an additional expansion board for increased functionality.All R30 receivers feature advanced smartphone integration through our intuitive FieldManager™ App, robust IP66 protection, and adhere to the highest safety standards (PLe, CAT4, SIL3). Future-proof your operations today with Tele Radio’s state-of-the-art R30 series.
Interested in the PAQ Line?
Send us an inquiry
